Installing a Cyclops fence charger for your horse fence is simple when you understand the basics: mount the charger indoors, connect the ground system using properly spaced ground rods, and run insulated underground wire to electrify your Cameo™ Pulse lines. A properly installed charger ensures safe, consistent power that keeps horses off the fence without causing harm.
Why Electric Matters for a Safe Horse Fence
A properly installed electric system is what transforms a fence from a physical barrier into a behavioral boundary. With the Cameo™ Horse Fence System, the addition of Cameo™ Pulse creates a psychological deterrent that trains horses to respect the fence line.
Instead of leaning, pushing, or testing the fence, horses learn quickly to stay off it. This reduces:
- Fence damage
- Injury risk
- Long-term maintenance costs
In Episode 10 of the Cameo Installation Skill Builder Series, Clayton breaks down how simple this process really is. One of the biggest takeaways is that electric fence installation is often overcomplicated when it does not need to be.
What Is a Cyclops Fence Charger?
The Cyclops Stallion 2.5 Joule Charger is a low-impedance electric fence charger designed for:
- Smaller fence systems
- Minimal vegetation interference
- Horses that typically respect boundaries
Key features include:
- Plugs into a standard outlet
- Low impedance for safe energy transfer
- Reliable pulse output
- Built-in lightning protection
- Modular design for easy repair
Unlike misleading mileage ratings, joules are the true indicator of power. This is what ensures your fence delivers a consistent and effective pulse.
Tools and Materials You’ll Need
Before starting installation, gather everything you need.
Tools
- Phillips screwdriver
- Pliers (dikes) for cutting wire
- Crescent wrench
- Drill (optional)
- Pocket knife for stripping wire
Materials
- Cyclops fence charger
- Underground insulated wire
- Three ground rods
- Ground rod clamps
- Cameo™ Pulse clamps and wing nuts
- Line clamps for securing wire
Having everything ready will make the process faster and cleaner.
Step 1: Mount the Fence Charger Properly
The charger must be installed indoors.
Best locations include:
- Barn interior
- Garage
- Covered utility space
Important installation tips:
- Mount near a standard electrical outlet
- Do NOT plug into a GFI outlet
- Keep it protected from moisture and weather
Why this matters: exposure to the elements reduces lifespan and reliability of the charger.
Step 2: Understand the Two Sides of the Charger
Every fence charger has two terminals:
Ground Side (Black)
- Connects to ground rods
- Completes the electrical circuit
- Does NOT shock animals
Hot Side (Red)
- Sends energy to the fence
- This is the side that delivers the pulse
Understanding this separation is critical to proper installation and safety.
Step 3: Install the Ground Rod System
This is one of the most important parts of the entire system.
Ground Rod Setup
- Use 3 ground rods
- Space them 10 feet apart
- Place them in moist soil if possible
Clayton emphasizes that ground placement directly impacts performance.
Installation Process
- Run ground wire from the charger to the rods
- Strip sections of wire at each rod
- Attach wire using ground rod clamps
- Tighten securely with a wrench
- Drive rods into the ground
Pro Tips:
- Install on the shady side of a building
- Wet soil improves conductivity
- In dry climates, consider longer rods
Once complete, bury the connecting wire in a shallow trench to keep things clean and protected.
Step 4: Run Underground Wire to the Fence
The hot wire carries power from the charger to your fence.
How to Install It
- Dig a trench about 6 inches deep
- Run insulated underground wire from charger to fence
- Route it to the nearest post, corner, or gate
Why burial matters:
- Protects wire from damage
- Prevents interference from equipment
- Keeps installation clean and safe

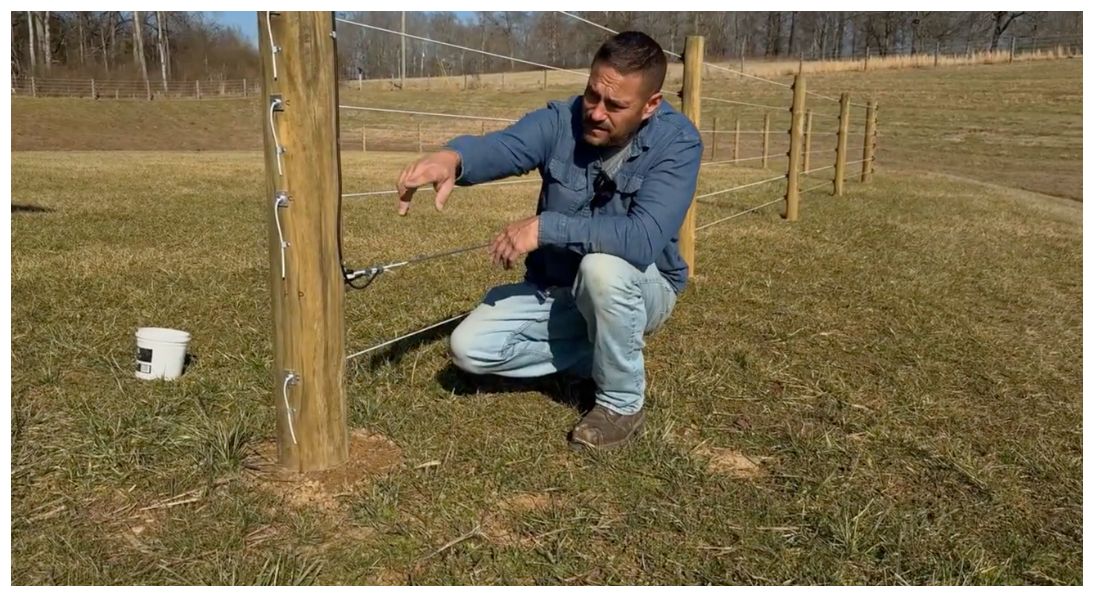

Step 5: Connect the Fence to Cameo™ Pulse
Once the wire reaches the fence, it is time to electrify the system.
Bottom Line Connection
- Strip about 1 to 2 inches of insulation
- Loop the wire
- Attach to the first Cameo™ Pulse clamp using a wing nut
Top Line Connection
Repeat the process:
- Run a jumper wire from bottom Pulse line to top Pulse line
- Attach using the same clamp and wing nut method
Now both lines are electrified.
Step 6: Electrifying Gates and Additional Sections
Gates require continuity in the system.
To maintain power:
- Dig a trench under the gate
- Run underground wire to the next post
- Reconnect to Pulse clamps
This ensures uninterrupted electrical flow across the entire fence.
Common Mistakes to Avoid
Even though the process is simple, there are a few common mistakes to watch for:
1. Improper Grounding
- Ground rods too close together
- Dry soil conditions
- Loose connections
2. Using the Wrong Outlet
- GFI outlets will trip the charger
3. Shallow Wire Burial
- Leads to damage from equipment or weather
4. Poor Connections
- Loose clamps reduce performance
- Inconsistent voltage delivery
5. Overcomplicating the System
As Clayton says, this process is straightforward. Keep it clean and simple.
Why This System Works So Well
The combination of Cameo™ fencing and Cyclops chargers creates a complete system built around safety and longevity.
Benefits
- Visible fence lines reduce collisions
- Flexible material reduces injury risk
- Electric deterrent prevents pressure on the fence
- Low maintenance compared to traditional systems
This is not just about keeping horses in. It is about protecting them long term.
Final Thoughts: Simple, Safe, and Effective
Installing a Cyclops fence charger is one of the most impactful upgrades you can make to your horse fence.
When done correctly, it:
- Improves safety
- Extends fence life
- Reduces maintenance
- Creates a more predictable environment for horses
And most importantly, it is a straightforward process that can be completed confidently by both professionals and DIY installers.
Frequently Asked Questions (FAQ)
How many ground rods do I need for an electric horse fence?
You need at least three ground rods spaced 10 feet apart to ensure proper grounding and consistent electrical performance.
Can I install a fence charger outdoors?
No. Fence chargers should always be mounted indoors or in a protected environment to prevent damage and extend lifespan.
Why is my fence charger not working properly?
The most common issue is poor grounding. Check ground rod spacing, soil moisture, and all connections.
How deep should underground wire be buried?
Underground wire should be buried about 6 inches deep to protect it from damage and ensure long-term reliability.
What is the difference between joules and mileage rating?
Joules measure the actual power output of the charger, while mileage ratings are only rough estimates. Always rely on joule rating for performance.
Will an electric fence hurt my horse?
No. Properly installed electric fences deliver a safe pulse that deters contact without causing harm.
